2017 new Cement sprayers and mortar guns with
Texture Sprayers

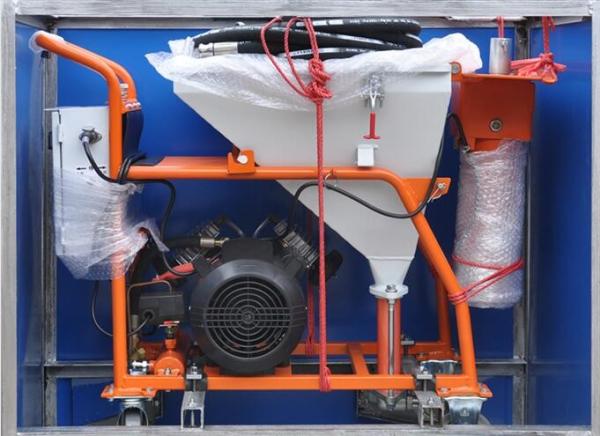

Sprayer with Screw
· Using the German advanced manufacturing techniques and high-end
main components makes for high quality and long life of the product
·Powerful control system-Coating thickness can be adjusted from
0.2cm-5cm(0.079in-2in) .It creates a nice even coating. The next
produce is to trowel the surface with a 50-70cm(1.64-2.3ft).
Plasterer’s trowel without worrying about unevenness and wall
hollows
·It was equipped with automatically periodical spraying system. For
instance, after spraying for 30 seconds, it could restart to spray
in 2 minutes,which allows you to adjust it manually if needed.So
machine or nozzle will not be clogged and you would have a smooth
surface finishing without delay.
· With safety control system, it will stop completely if any
malfunction happens.That ensures the your safety, protects the
sprayer itself and alert you to repair it in time to save your
precious time
Comes with:
·Complete set of airless sprayer
·Airless hand spray gun for zinc-rich coating
·Rotating nozzle
·High-pressure hose (8mm×10mm)
·High-pressure hose (6mm×2mm)
·Transition joint (M14×1)
·Spare parts supplied by manufacturer
·Hook spanner 78-85
·Hook spanner 55-62
·Inner hexagon spanner 5mm
·Inner hexagon spanner 6mm
·Operational Manual
·Product Qualification Certificate
| ITEM NO. | PT3625 |
| POWER | 4HP(3000W) |
| POWER REQUIREMENT | 220-240V/50HZ |
| MAX PRESSURE | 200Bar(2900Psi) |
| DELIVERY | 25L/min |
| TIP SIZE | 3,4,5,6 mm |
| WEIGHT | 140KGS |
| MEAS | 111×62×102cm |
| DELIVERY HEIGHT | 3-15m |
| DELIVERY DISTANCE | 1-40m |
| HOPPER VOLUME | 50L |

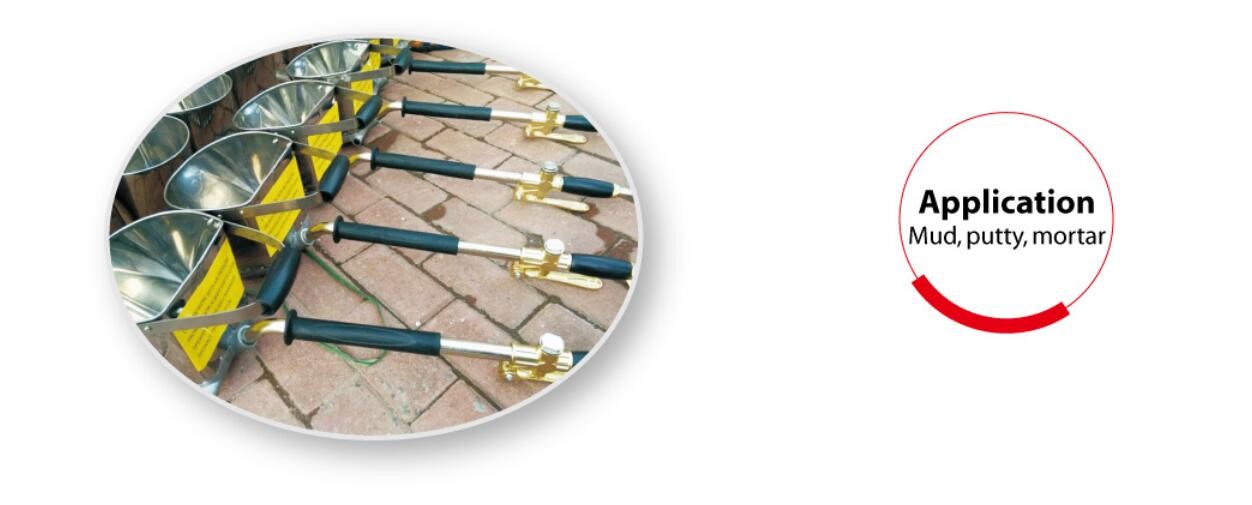

Mortar Gun
·Max output pressure:30Mpa
·Max jet flow:25L/min
·Max grain size:6mm
·The best spray distance:30cm
·Spraying width:3.5kg
·Dimension:25*65*35cm
Texture Sprayer(Compressor needed)
| ITEM NO. | PT60L/PT80L/100L |
| DELIEVERY | 8-10 kg/min |
| TIP SIZE | 4,6,8 mm |
| WEIGHT | 38kgs |
| AIR COMPRESSOR | YES |
| MEAS | 47×44×92cm |
PT10 multi-function texture sprayer
The whole machine equip with VFD control system, the power output
is more steady, the flow rate is 15 liters per minute, the
transmission pressure is 30BAR, 220V power supply is directly used,
the hopper capacity is 55 liters,
Main Features
1) Easy to use, easy to move.
2) Variable pump output lets you adjust material flow.
3)Optimal remote control operation.
4)Easy to take apart for quick clean-up and transport
5)Easy to maintain with long-wearing parts and components
Application:
· Fireproofing
· Self-leveling
· Flooring
· Mortar
· Stucco
· EIFS
