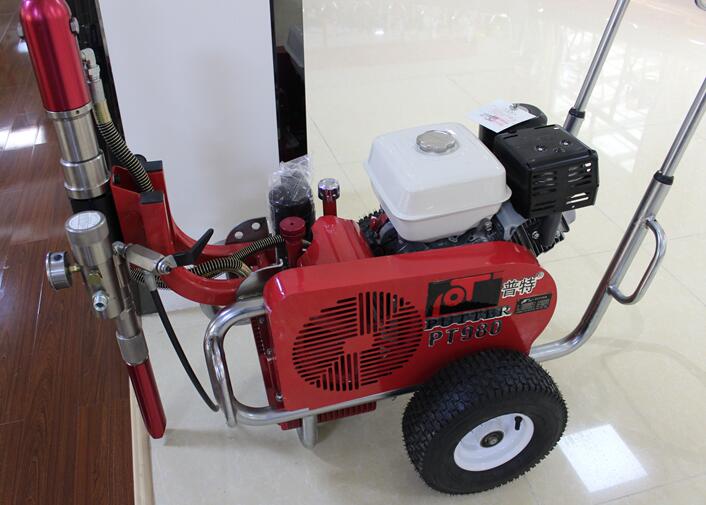

Paint sprayers for putty Airless Paint Sprayer with Hydraulic Pump
Specification:

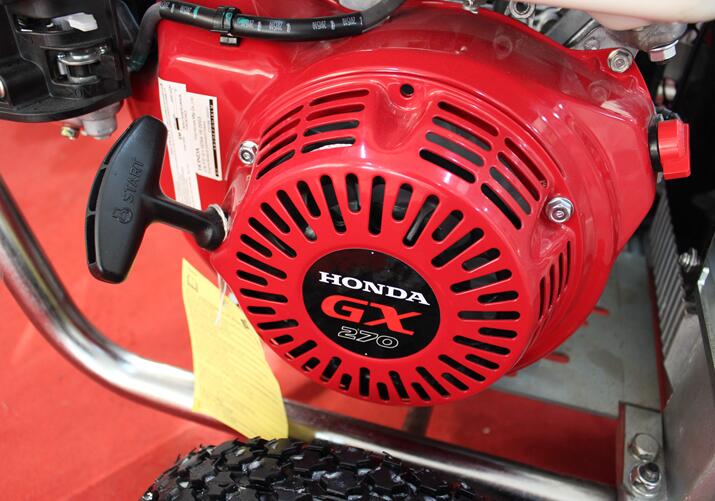

Power 9.0HP Petrol Engine Honda or other Chinese brand.
Pressure 250bar / 3626psi
Flow Rate 13.5 L/min
Max Tip Size 0.056” * 1 gun
Net Weight 145 kg
Carton Dimension: 121*80*115cm
Container Loading Data: 16 sets/20ft
Comes complete on Heavy Duty Trolley, High Flow Hydraulic Piston
Pump, Airless Gun, 15 meters * 1/2 “ Hose, 1m*1/4″ whip hose,
Airless Tip 243&539, Base and Tool Set.
Features :
Powerful high-performance pump -the power pack for large building
projects and applying high viscosity materials.
The material pump of the Heavy duty units is driven by hydraulic
motor which is imported from Japan (China hydraulic motor is
available with cheaper price).
This has advantage that the shovel piston has a distinctly longer
and slower stroke than with direct drive electric pumps.
The high suction power improves the application of high viscosity
materials.
The low wear rate and the equipment are further positive aspects of
hydraulic technology.
The wear surfaces of cylinder and piston rod are coated with an
extremely wear resistant layer of hard chrome, making them able to
with-stand aggressive and abrasive materials.
The pressure can be smoothly regulated up to 250 bar for perfect
matching.
Advantages:
① The pressure can be easily increased for perfect matching.
② The surfaces of cylinder and piston rod are coated with an
extremely anti-abrasive layer, making them able to handle
heavy-duty projects.
③ Powerful high-performance pump - the power pack for large
building projects and applying high viscosity materials.
④ This has advantage that the shovel piston has a distinctly longer
and slower stroke than with direct drive electric pumps.
